The rail side lubrication device is mainly suitable for heavy industrial enterprises equipped with large lifting machinery, such as steel, shipbuilding, ports, mines, non-ferrous metal smelting, casting and forging enterprises. By lubricating the track, friction is reduced, wear is reduced, maintenance costs are saved, time and effort are saved, thereby achieving the goal of economic safety. The device is widely used by domestic companies such as Taiyuan Iron and Steel Group, Baosteel, Ansteel, Baosteel, Baosteel, and Shagang, and has received full recognition and good feedback.

Basic parameters:

Scope of application: Track products with a width between 40-120mm

Traffic:

Pump specifications:

Pump type	2P
Piston diameter	Φ8mm
Pump capacity	0.1CC
Reduction ratio	1/210
Flow cycle	109m
Maximum flow rate	0.9cc/100m

Rail side anti-wear agent (special type)

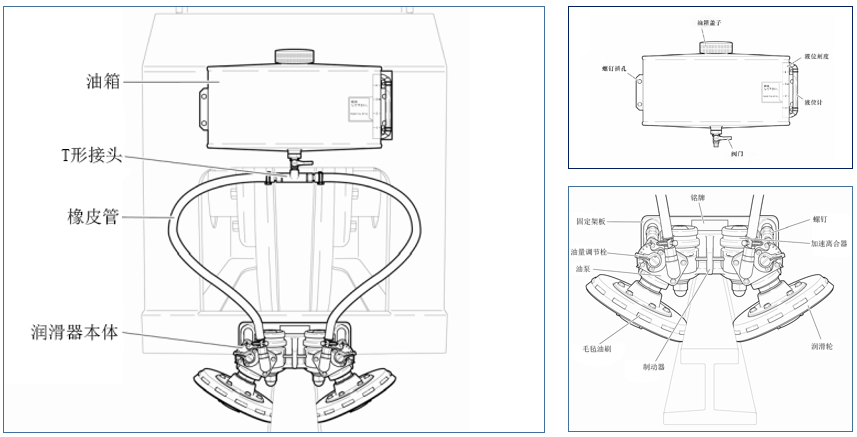

Main body rough construction diagram

Product effects and characteristics

Usage effect

• Replacing manual lubrication, reducing unnecessary downtime, and avoiding safety hazards caused by high-altitude lubrication;

• Effectively reduce the wear of the track and wheel rims, and roughly increase the service life of the wheels by 8-10 times or more;

• Effectively reducing vibration and noise generated by friction;

• Reduce friction during operation to make the crane run more smoothly;

• Reduce the load during crane operation, making micro operation easier;

• Significantly save electricity consumption and maintenance costs.

Product features

• Adopting unpowered automatic oiling, without the need for external power supply, energy-saving and environmentally friendly. Transforming mechanical friction into lubricating friction can save wheel consumption and maintenance parking time;

• The device is evenly lubricated on the side of the track and will not apply to the surface of the track, so there is no need to worry about slipping during operation;

• The lifespan of the main body is generally over 10-20 years (outdoor for over 10 years, indoor for over 20 years), with extremely high cost-effectiveness;

• By using high-performance power pumps and precisely controlling the application amount, a small and stable lubricating oil effect can be obtained;

• Special anti-wear lubricant: using professional anti-wear agents, the lubrication effect can be improved by 8-10 times.

Advantages of using rail side lubrication devices

• Adopting a rail side lubrication device to prevent wear and tear between the wheels and the track;

• Reduce the number of wheel and track updates;

• Reduce maintenance workload and downtime caused by maintenance;

• Extend the service life of machinery and save maintenance costs;

• Automation of track lubrication, eliminating the trouble caused by manual lubrication;

• Reduce the resistance of mechanical walking and reduce power consumption.

Product selection

Basic parameters:

Scope of application: Track products with a width between 40-120mm

Traffic:

Pump specifications:

Pump type	2P
Piston diameter	Φ8mm
Pump capacity	0.1CC
Reduction ratio	1/210
Flow cycle	109m
Maximum flow rate	0.9cc/100m

产品选型

序号	名称	品牌	型号	出油量	备注
1	轨道润滑装置	河创	HC-TYQ40	0-0.9cc/1000m	/
2	轨道润滑装置	河创	HC-TYQ120	0-3.5cc/1000m

基本参数

适用范围

宽度在40——120mm之间的轨道产品

泵规格
泵型	2P
活塞直径	Φ8mm
泵容量	0.1CC
减速比	1/210
流量循环	109m
最大流量	0.9cc/1000mm
